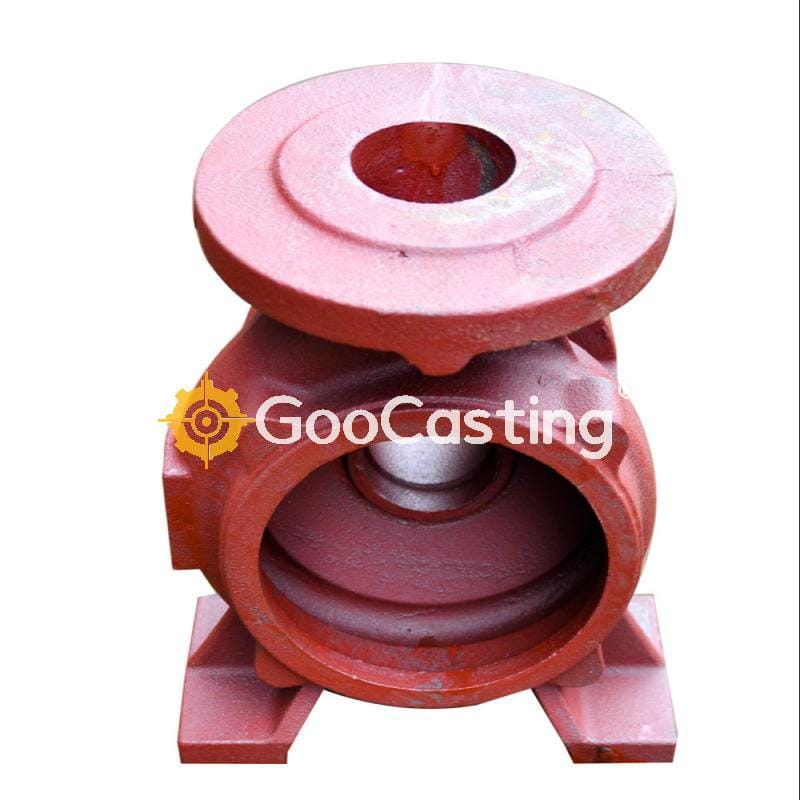

Water Pump Body Casting Resin Coated Sand Grey Cast Iron

Water Pump Body Casting,Resin Coated Sand Grey Cast Iron

$10.00

Professional resin coated sand HT200 HT250 grey cast iron pump volute for vertical pipeline circulating pump, with integrated flow channel, high pressure resistance, low leakage, full customization of size, mold and surface coating.

Material: HT200 / HT250 grey cast iron
Casting Process: Resin coated sand casting
Working Pressure: 0.6–1.6MPa
Standard Surface: Red anti-rust primer
Custom Service: Mold development, size, logo, finish customization

Sand Casting Parts

Description
Reviews (0)

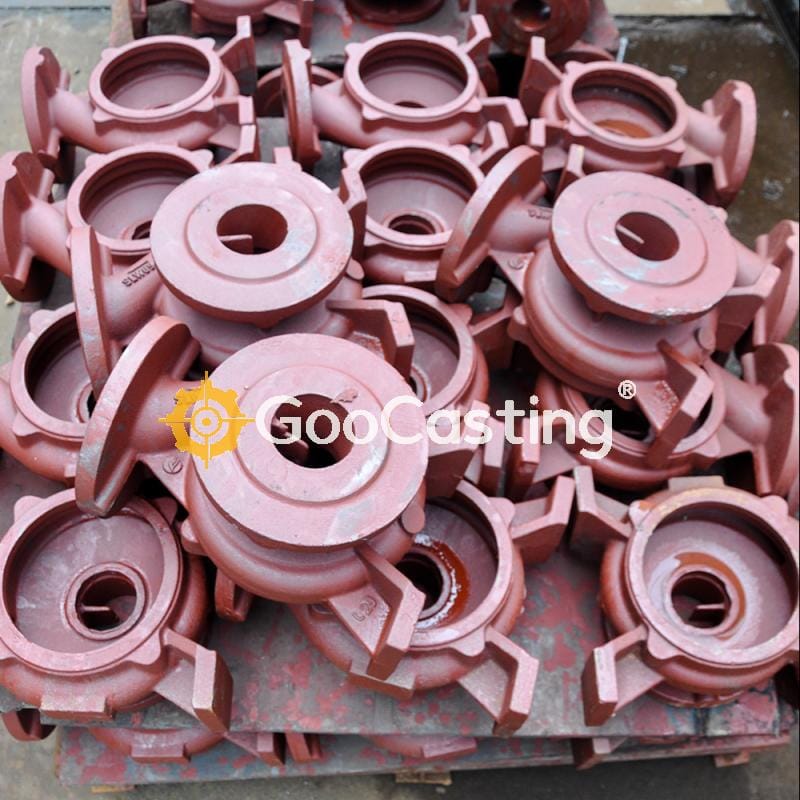

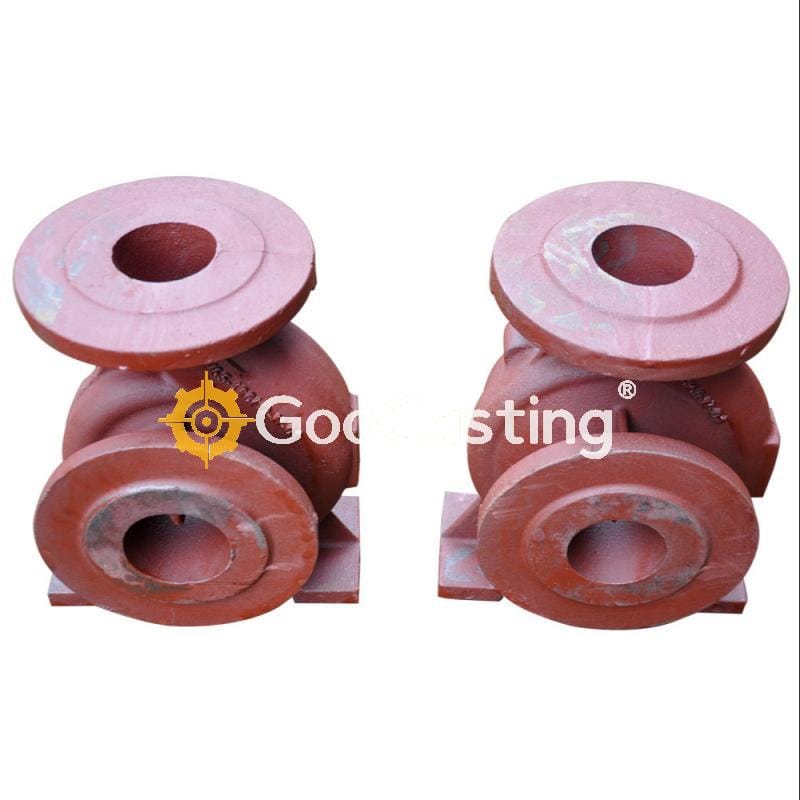

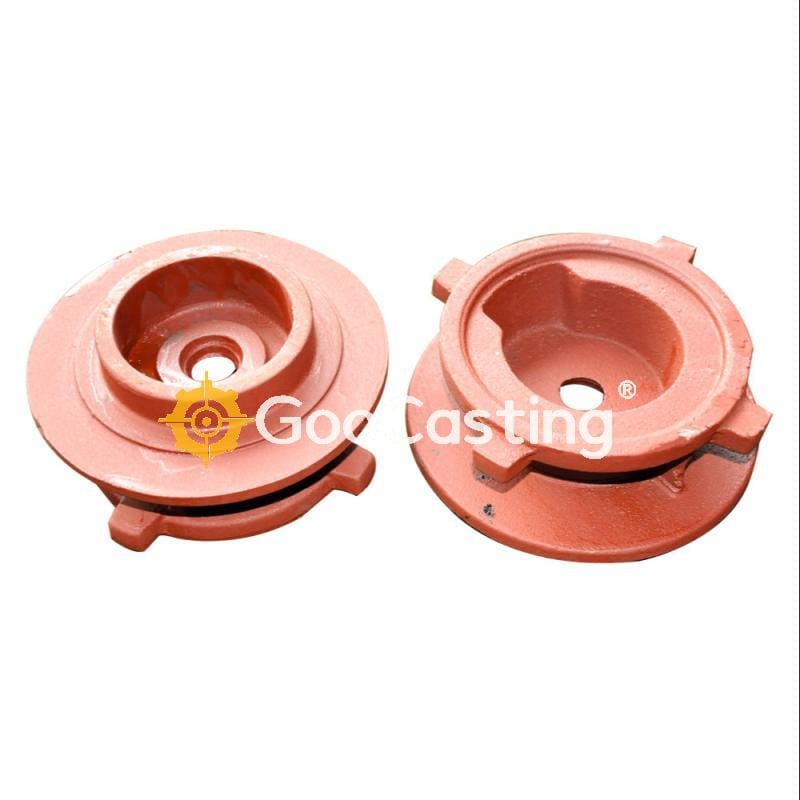

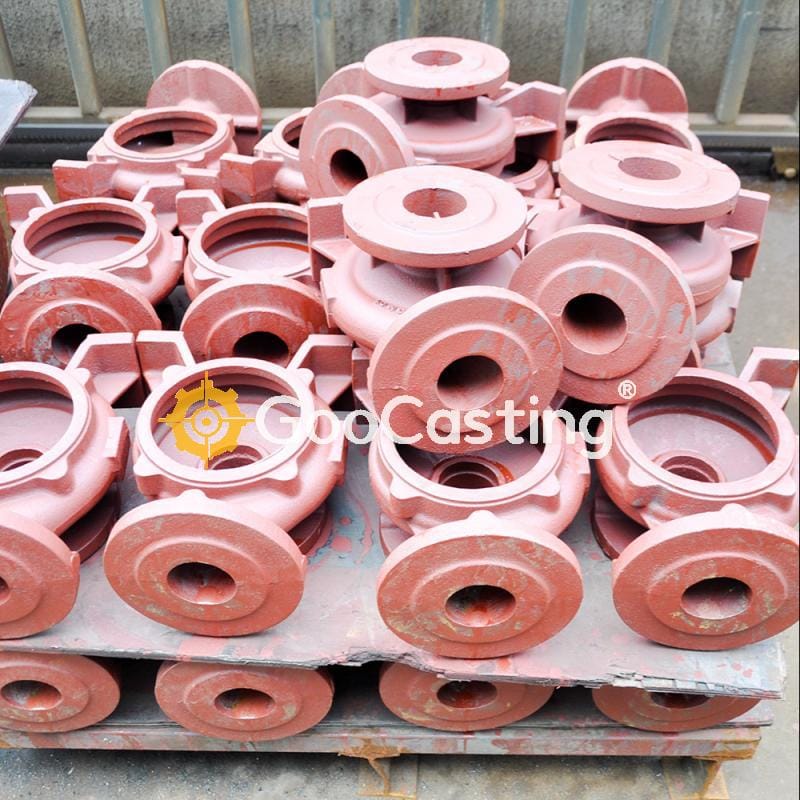

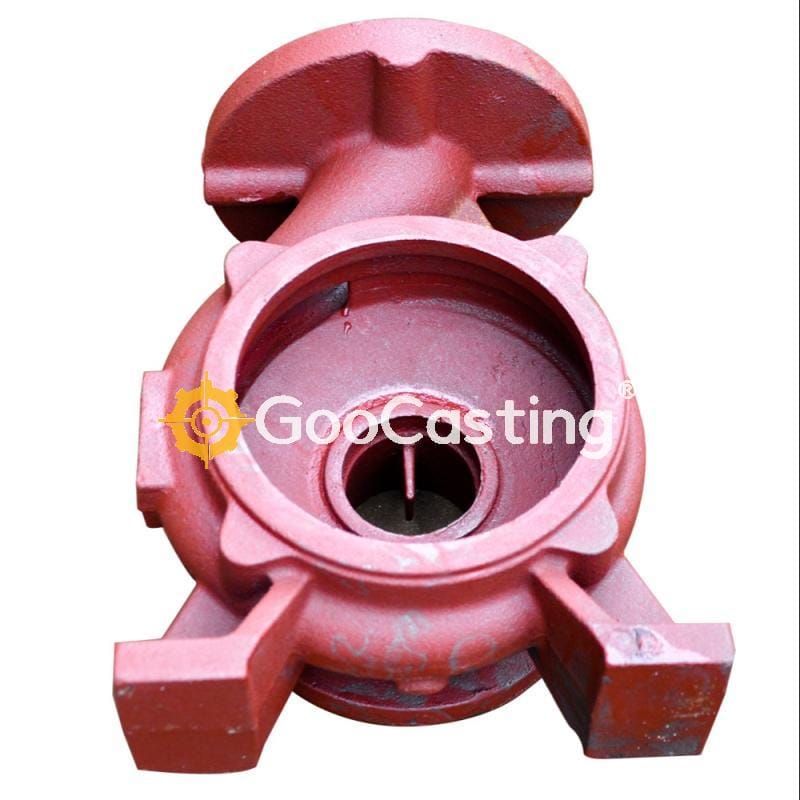

Resin coated sand grey cast iron pump casing is specially produced for vertical pipeline pumps and circulating pumps. Integrated one-piece casting forms complete flow channel, flange and base without welding. Smooth casting surface effectively reduces air holes, sand holes and water leakage issues. Grey cast iron material features noise reduction, wear and corrosion resistance, suitable for long-term fluid transportation. We support one-stop service including casting, precision machining and anti-corrosion coating, widely matched with various water pump manufacturers.

Specifications

Item	Specification
Material	HT200 / HT250 grey cast iron
Casting Technology	Resin coated sand casting
Working Pressure Range	0.6–1.6MPa
Standard Coating	Red anti-rust primer, epoxy topcoat optional
Structure	Integrated volute, flange, support base, inner flow channel
Post Processing	Sand cleaning, stress relief aging, turning, boring, tapping
Customization	Flange size, flow channel volume, mold, cast logo, surface paint

Applications

HVAC circulating pumps, industrial pipeline centrifugal pumps, household booster pumps, sewage treatment pumps, agricultural irrigation pumps, fire pressure stabilizing pumps and other fluid conveying equipment.
