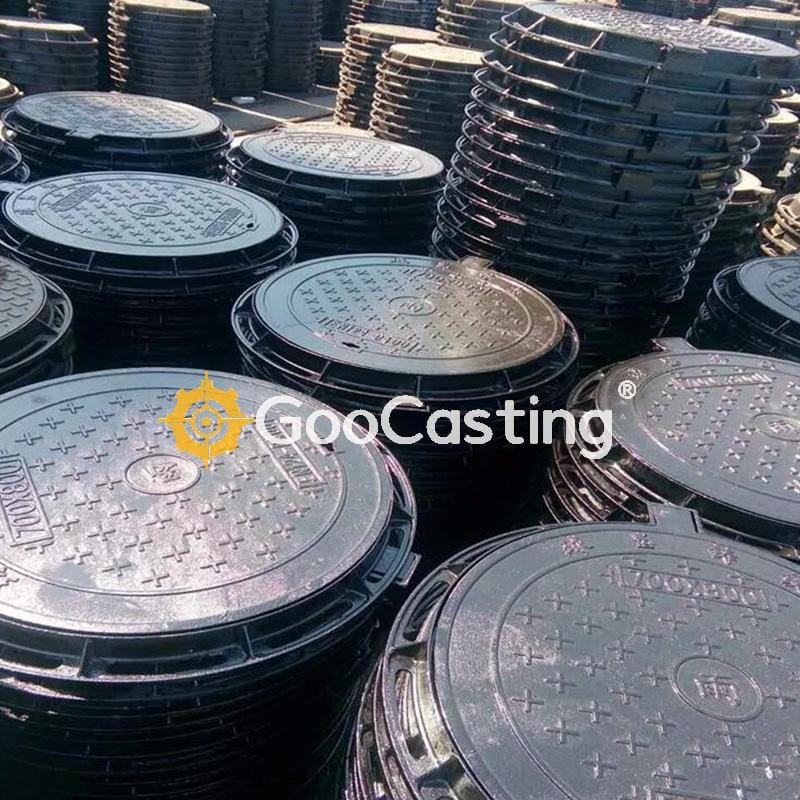

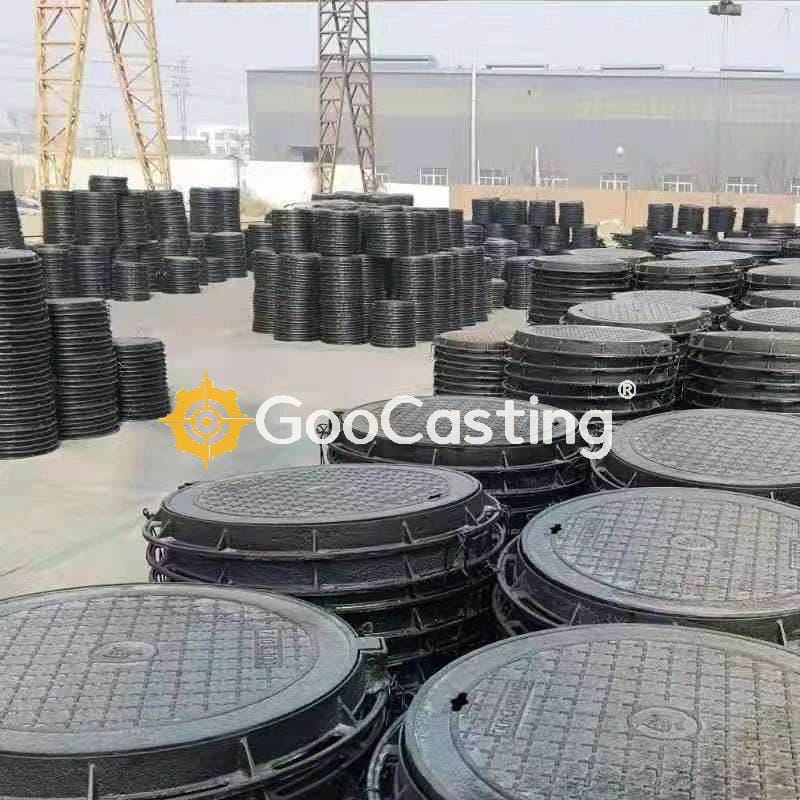

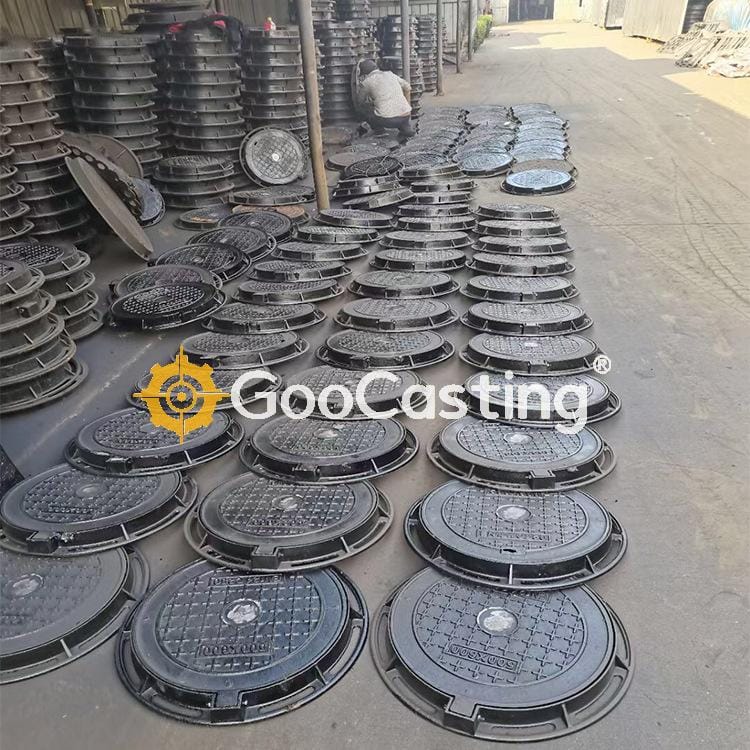

Round Ductile Iron Stormwater Manhole Cover with Frame,EN124 Class E600, 700×800mm

$10.00

We supply high-quality EN124 standard round ductile iron stormwater manhole covers with frame, made of QT450-10 spheroidal graphite cast iron. Featuring high pressure resistance, anti-slip, anti-settlement, anti-theft and noise-free performance.

Available in B125/C250/D400/E600 load classes and multiple standard sizes.
Custom design, logo engraving and surface treatment are supported,
Used for municipal roads, ports, airports and industrial drainage projects.

Sand Casting Parts

This round ductile iron stormwater manhole cover is manufactured in strict compliance with European standard EN124 Class E600, with a clear dimension specification of 700×800mm. Cast from high-quality spheroidal graphite cast iron, it is specially designed for rainwater drainage systems, widely exported for municipal infrastructure, heavy-duty traffic, port and airport engineering projects worldwide.

Product Features

High Load-Bearing Performance (EN124 E600 Grade)
Class E600 heavy-duty bearing capacity allows it to withstand extreme heavy vehicle loads, perfectly suitable for freight terminals, port roads, heavy truck lanes and industrial zones with frequent overweight vehicle passage.
Premium Ductile Iron Material
Adopts QT450-10 ductile iron raw material, featuring strong tensile strength, excellent anti-impact and anti-fracture performance. Compared with traditional gray cast iron covers, it avoids easy cracking and breakage under long-term heavy pressure.
Anti-Slip Surface Design

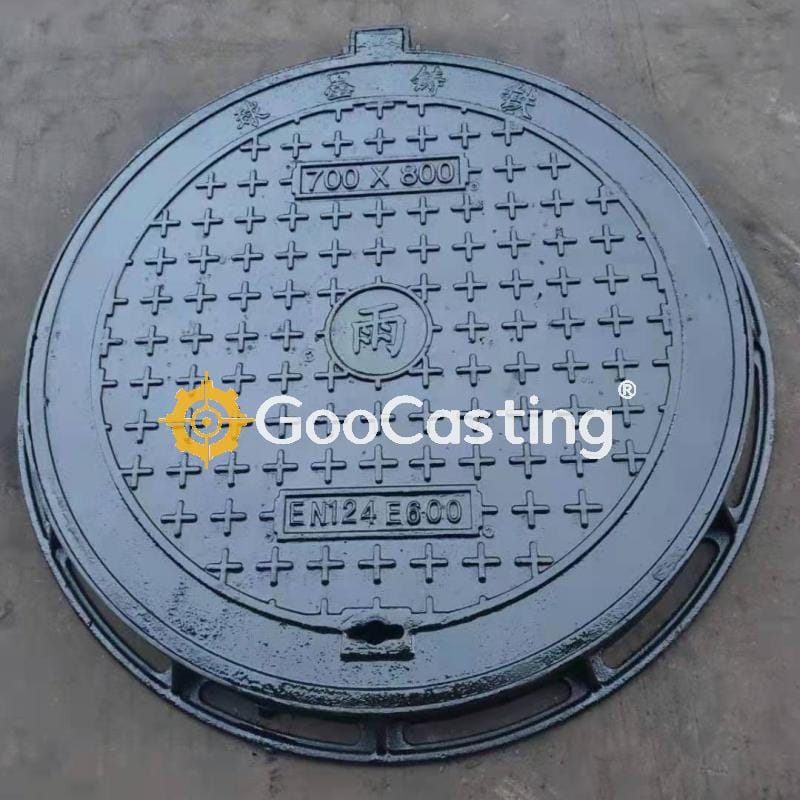

The whole cover surface is covered with cross anti-slip protrusions, effectively preventing slipping risks for pedestrians and vehicles in rainy, snowy and icy weather. The central cast “Rain” marking clearly identifies it as a dedicated stormwater drain cover for easy construction identification.
Multi-Practical Structural Design
Equipped with matching integrated cast iron frame to prevent settlement, displacement and noise bumping when vehicles pass. Built-in anti-theft structure avoids cover loss; uniform black bitumen coating delivers great rust and corrosion resistance for long-term outdoor service.
Standard Size Specification
Standard size 700×800mm refers to clear opening 700mm and outer frame overall size 800mm, a mainstream specification for overseas municipal rainwater well reconstruction and new construction projects. Custom sizes, logos and text engraving are available for OEM orders.

Load Grade Application Scenarios

EN124 E600: Ports, airports, heavy truck roads, logistics freight yards, industrial heavy traffic areas (this product’s applicable scene)
Optional other grades: B125 (walkways), C250 (residential roads), D400 (urban main roads)

Wide Application

Our EN124 E600 round stormwater manhole covers are extensively exported to global markets for rainwater drainage wells, municipal road drainage systems, commercial plazas, industrial parks, seaports and airport supporting drainage facilities. We support small trial orders and large bulk export orders, with complete export packaging and fast delivery for overseas engineering contractors and distributors.
